Category : Honing Brushes, Cylinder Deburring Tool Model No. : GBH-CH008 Fill Material : Silicon Carbide Abrasive Applications : Polishing internal parts. Widely used for cylinder hone, air conditioning compressors, valves, engines, cam bearing, aerospace industry and more.

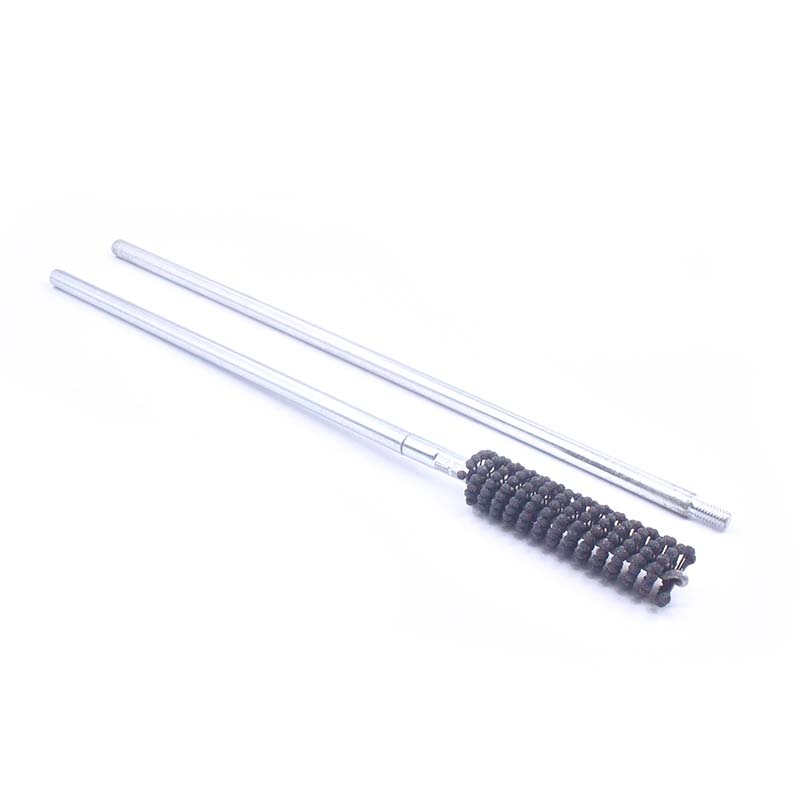

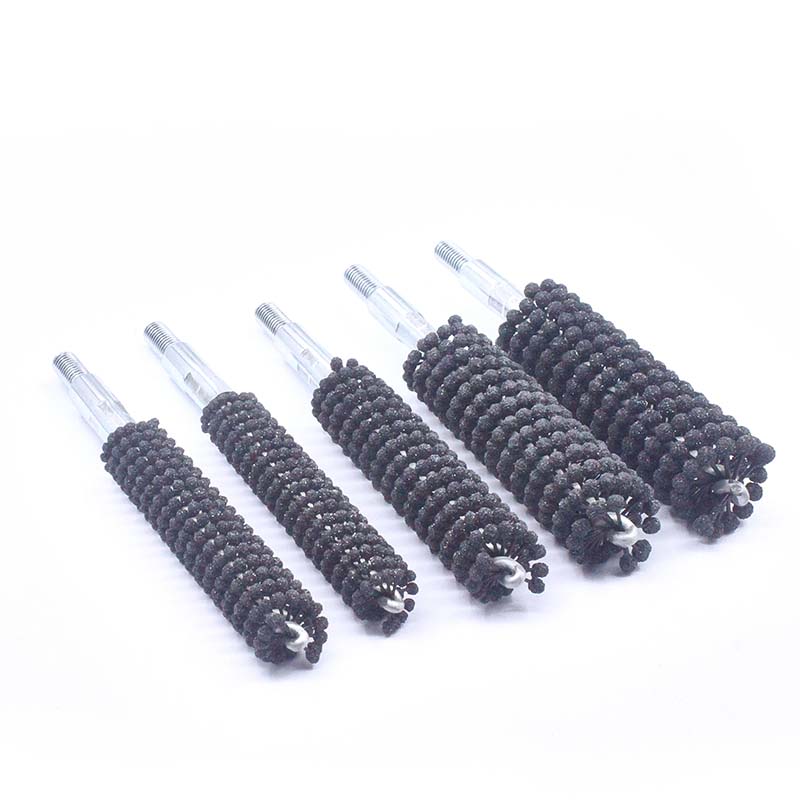

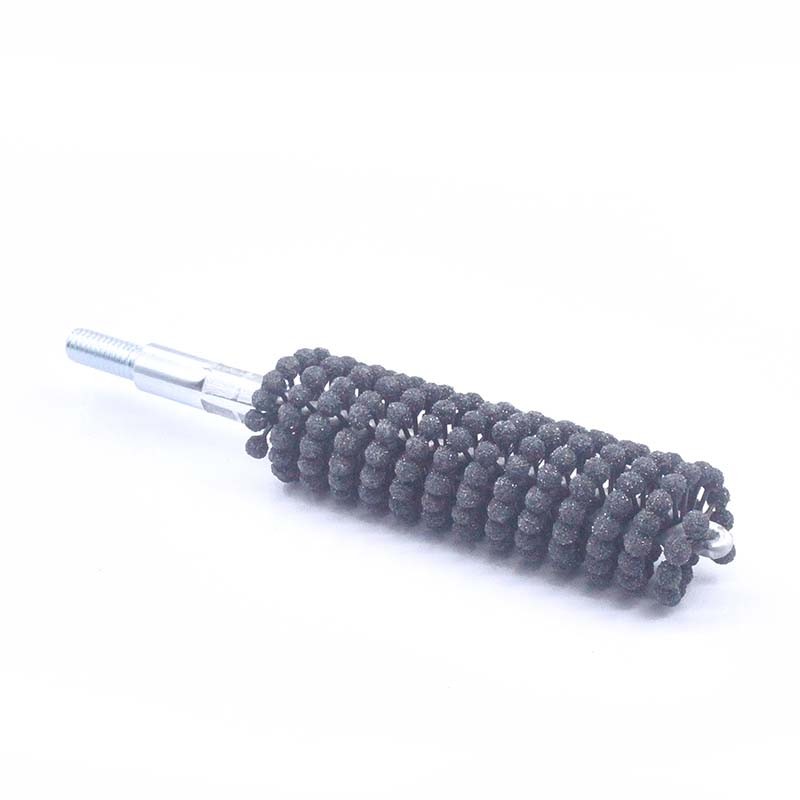

Honing brushes, cylinder deburring tool, abrasive nylon filament, M6 thread
Honing brush, silicon carbide abrasive filament, flexible as cylinder honing and polishing tool.
Applications-Widely used in polishing of cylinders, pipes, valves with different shapes and sizes, usually used in hydraulic part, engine block, break hub, pipe internal machining, etc.
Finishing Benefits-Offered in a wide variety of grits and abrasives to allow machinists to achieve specific finishing tolerances as well as a beautiful crosshatch finish.
Crosshole Deburring-Ideal for finishing and deburring simultaneously in a single setup. Can be used in virtually any rotating spindle.
Silicon Carbide-Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials.
Applications: Widely used for motor cylinders, piston rods, boreholes on shafts and cranks, pneumatic and hydraulic cylinders, valve guides, compressed air equipment, wheel cylinders, brake control cylinders, pipes and tubes, and many other applications in the automotive and aerospace industries, as well as hydraulic systems and heat exchangers.
Choose Your Specifications |
Brush Diameter | Grit Size | Brush Working Length | Overall Length | Stem Diameter | Fill Material | SKU | Request a Quote |
| 0.39" / 10mm | #120 | 2.95" / 75mm | 4.52" / 115mm | 0.24" / 6mm | Silicon Carbide Abrasive | CH008-120-10 |  |
| 1/2" / 12.7mm | #120 | 2.95" / 75mm | 4.52" / 115mm | 0.24" / 6mm | Silicon Carbide Abrasive | CH008-120-127 | |
| 0.56" / 14.3mm | #120 | 2.95" / 75mm | 4.52" / 115mm | 0.24" / 6mm | Silicon Carbide Abrasive | CH008-120-143 | |
| 0.62" / 15.9mm | #120 | 2.95" / 75mm | 4.52" / 115mm | 0.24" / 6mm | Silicon Carbide Abrasive | CH008-120-159 | |
| 0.75" / 19.1mm | #120 | 2.95" / 75mm | 4.52" / 115mm | 0.24" / 6mm | Silicon Carbide Abrasive | CH008-120-191 | |
| 0.81" /20.6mm | #120 | 2.95" / 75mm | 4.52" / 115mm | 0.24" / 6mm | Silicon Carbide Abrasive | CH008-120-206 | |
For more inquiries, please feel free to contact us to discuss your requirements in more detail and confirm prices. Or just click to design your own specials.
