Abrasive Disc Brushes, Edge Deburring Tool, Abrasive Nylon Filament, Industrial Quality, DB001

Category         : Disc Brushes, Edge Deburring Tool
Model No.       : GBD-DB001
Fill Material   : Silicon Carbide Abrasive
Grit Selections: #120, #240, #320
Applications     : For in-machine deburring, edge radiusing, polishing and surface finishing.

Product Description:

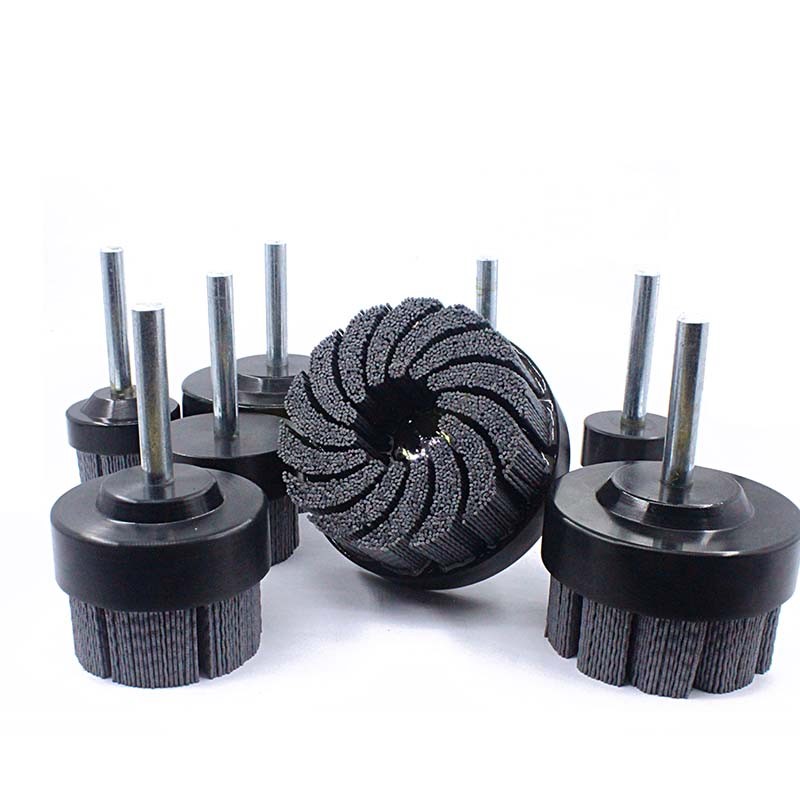

Abrasive Disc Brushes, Edge Deburring Tool, Surface Finishing and Polishing


Disc brush, silicon carbide abrasive filament, compatible with clamping fixture


  • Applications-Ideal for in-machine deburring, edge radiusing, surface conditioning

  • Industries-Compatible with automated machinery, CNC machining centers, transfer lines and robotic cells

  • Silicon Carbide-Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials.


Applications: Deburring flat surfaces on machined components, improving texture on machined or ground surfaces, deburring face-milled castings or forgings, blending tool marks after machining or grinding, deburring the edges of an aluminum engine cover.





Choose Your Specifications

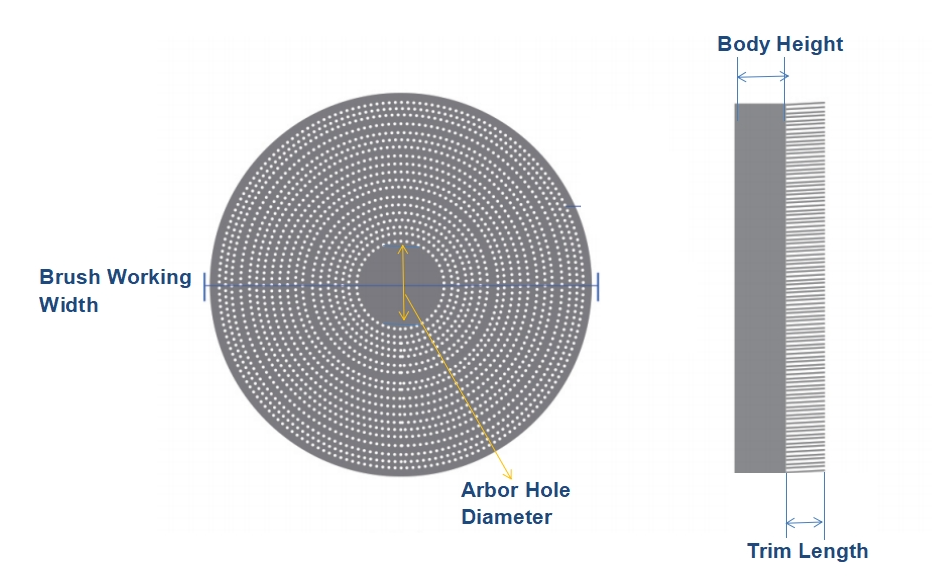

disc brush drawing.png


Brush Working Width

Grit Size

Trim Length

Overall Height

Shaft Height

Shaft Diameter

Fill Material

SKURequest a Quote
1.18" / 30mm#1800.98" / 25mm4.13" / 105mm2.55" / 65mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-30screenshot-1710661529284.png
1.57" / 40mm#1800.98" / 25mm4.33" / 110mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-40screenshot-1710661529284.png
1.97" / 50mm#1800.98" / 25mm4.33" / 110mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-50screenshot-1710661529284.png
2.36" / 60mm
#1800.98" / 25mm4.33" / 110mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-60screenshot-1710661529284.png
2.75" / 70mm#1801.18" / 30mm4.52" / 115mm2.16" / 55mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-70screenshot-1710661529284.png
3.15" / 80mm#1801.18" / 30mm4.52" / 115mm2.16" / 55mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-80screenshot-1710661529284.png
3.54" / 90mm#1801.18" / 30mm4.52" / 115mm2.16" / 55mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-90screenshot-1710661529284.png
3.94" / 100mm#1801.18" / 30mm4.52" / 115mm2.16" / 55mm0.39" / 10mmSilicon Carbide AbrasiveDB001-180-100screenshot-1710661529284.png
1.57" / 40mm#1201.18" / 30mm4.33" / 110mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-40screenshot-1710661529284.png
1.97" / 50mm#1201.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-50screenshot-1710661529284.png
2.48" / 63mm#1201.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-63screenshot-1710661529284.png
2.95" / 75mm#1201.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-75screenshot-1710661529284.png
3.15" / 80mm#1201.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-80screenshot-1710661529284.png
3.54" / 90mm#1201.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-90screenshot-1710661529284.png
3.94" / 100mm#1201.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmImported Silicon Carbide AbrasiveDB001-120-100screenshot-1710661529284.png
1.18" / 30mm#2400.98" / 25mm4.13" / 105mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-240-30screenshot-1710661529284.png
2.36" / 60mm#2401.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-240-60screenshot-1710661529284.png
3.15" / 80mm#2401.18" / 30mm3.93" / 100mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-240-80screenshot-1710661529284.png
3.94" / 100mm#2401.18" / 30mm4.52" / 115mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-240-100screenshot-1710661529284.png
1.18" / 30mm#3200.98" / 25mm4.13" / 105mm2.36" / 60mm0.39" / 10mmSilicon Carbide AbrasiveDB001-320-30screenshot-1710661529284.png


For more inquiries, please feel free to contact us to discuss your requirements for disc brushes in more details and confirm prices. Or just click to design your own specials
