DB003, Silicon Carbide Abrasive Disc Brushes, Handmade Threading, Industrial Quality

Abrasive Disc Brushes, Hand Threading, Surface Finishing and Polishing

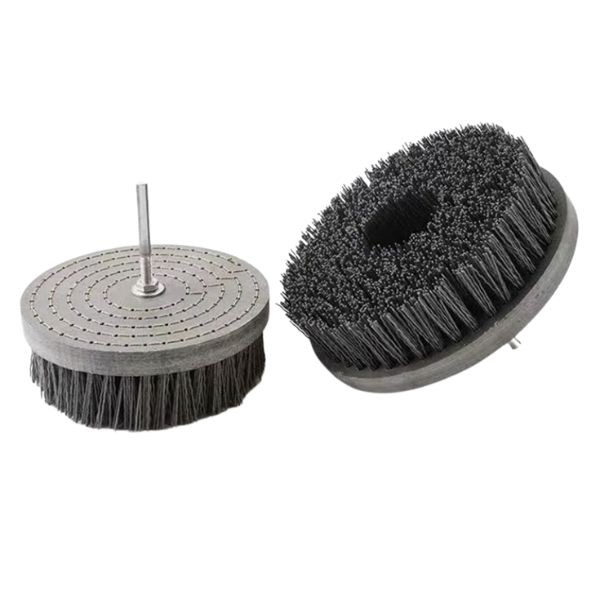

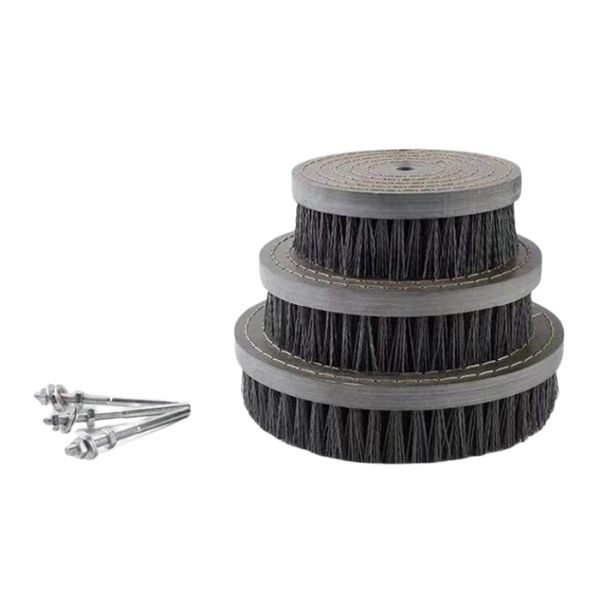

Disc brush, silicon carbide abrasive filament, compatible with clamping fixture

• Applications-Ideal for in-machine deburring, edge radiusing, surface conditioning

• Industries-Compatible with automated machinery, CNC machining centers, transfer lines and robotic cells

• Silicon Carbide-Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials.

Applications: Deburring flat surfaces on machined components, improving texture on machined or ground surfaces, deburring face-milled castings or forgings, blending tool marks after machining or grinding, deburring the edges of an aluminum engine cover.

Brush Working Width	Grit Size	Trim Length	Overall Height	Wire Diameter	Shaft Diameter	Fill Material	SKU	Request a Quote
1.18" / 30mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-320-30
1.18" / 30mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-240-30
1.18" / 30mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-180-30
1.57" / 40mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-320-40
1.57" / 40mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-240-40
1.57" / 40mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-180-40
1.97" / 50mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-320-50
1.97" / 50mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-240-50
1.97" / 50mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-180-50
2.36" / 60mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-320-60
2.36" / 60mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-240-60
2.36" / 60mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-180-60
2.75" / 70mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-320-70
2.75" / 70mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-240-70
2.75" / 70mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.19" / 5mm	Silicon Carbide Abrasive	DB003-180-70
3.15" / 80mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-320-80
3.15" / 80mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-240-80
3.15" / 80mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-180-80
3.54" / 90mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-320-90
3.54" / 90mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-240-90
3.54" / 90mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-180-90
3.94" / 100mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-320-100
3.94" / 100mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-240-100
3.94" / 100mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-180-100
4.72" / 120mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-320-120
4.72" / 120mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-240-120
4.72" / 120mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-180-120
5.90" / 150mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-320-150
5.90" / 150mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-240-150
5.90" / 150mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-180-150
7.08" / 180mm	#320	1.18" / 30mm	3.93" / 100mm	0.023" / 0.6mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-320-180
7.08" / 180mm	#240	1.18" / 30mm	3.93" / 100mm	0.031" / 0.8mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-240-180
7.08" / 180mm	#180	1.18" / 30mm	3.93" / 100mm	0.039" / 1.0mm	0.31" / 8mm	Silicon Carbide Abrasive	DB003-180-180

For more inquiries, please feel free to contact us to discuss your requirements for disc brushes in more details and confirm prices. Or just click to design your own specials.
