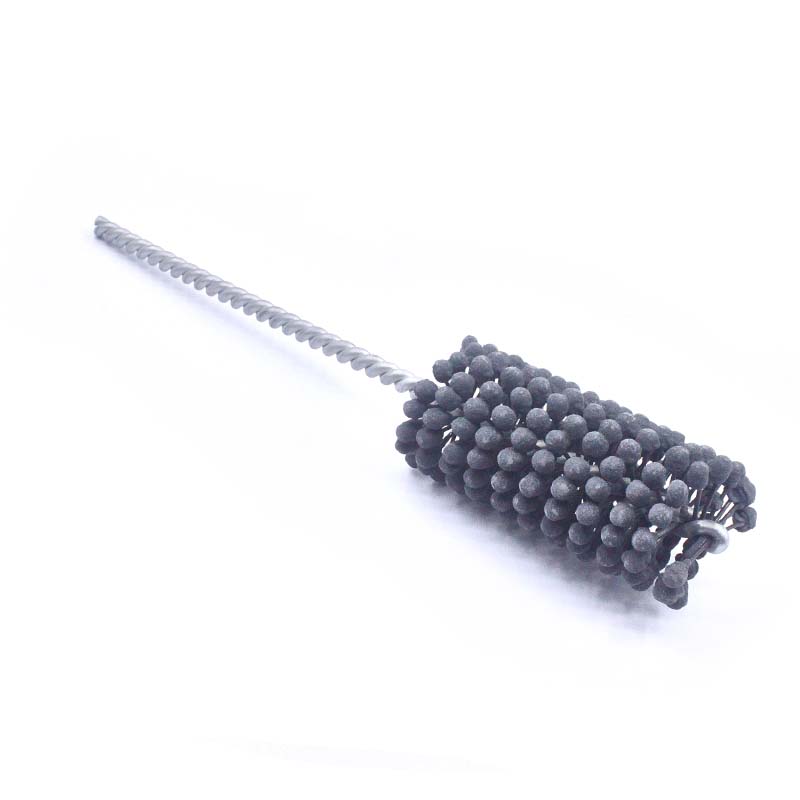

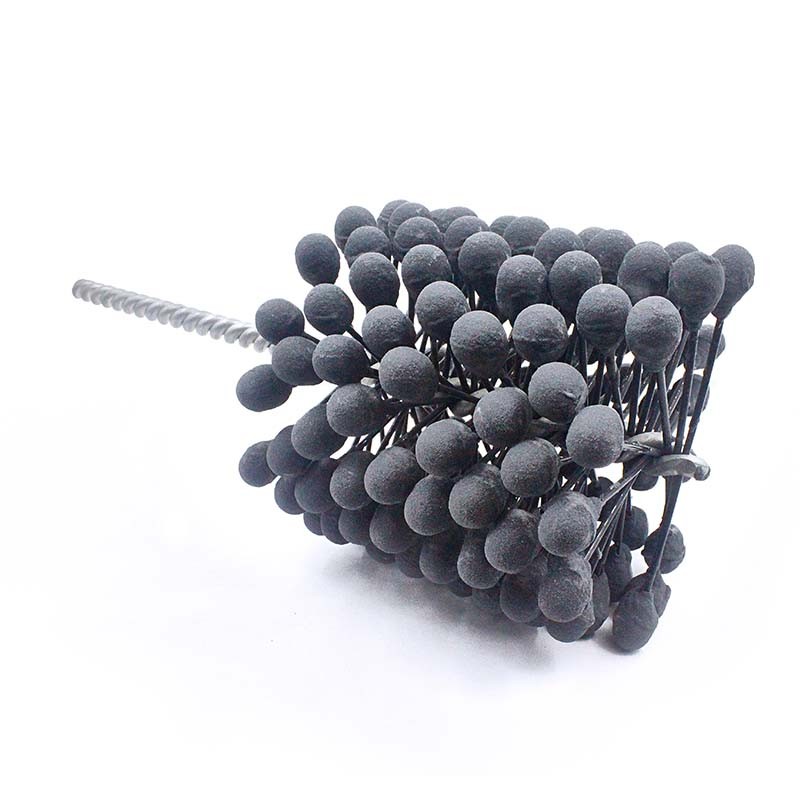

Honing Brushes, Cylinder Deburring Tool, Abrasive Nylon Filament, #320 Grit, CH005

Honing brushes, cylinder deburring tool, abrasive nylon filament, #320 Grit Size

Honing brush, silicon carbide abrasive filament, flexible as cylinder honing and polishing tool.

• Applications-Widely used in polishing of cylinders, pipes, valves with different shapes and sizes, usually used in hydraulic part, engine block, break hub, pipe internal machining, etc.

• Finishing Benefits-Offered in a wide variety of grits and abrasives to allow machinists to achieve specific finishing tolerances as well as a beautiful crosshatch finish.

• Crosshole Deburring-Ideal for finishing and deburring simultaneously in a single setup. Can be used in virtually any rotating spindle.

• Silicon Carbide-Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials.

Applications: Widely used for motor cylinders, piston rods, boreholes on shafts and cranks, pneumatic and hydraulic cylinders, valve guides, compressed air equipment, wheel cylinders, brake control cylinders, pipes and tubes, and many other applications in the automotive and aerospace industries, as well as hydraulic systems and heat exchangers.

Crosshole Honing Brushes in Small-Medium Diameter (12mm-48mm) for Small Engines, Cylinders

Ideal for deburring and polishing small engines, cyliners.

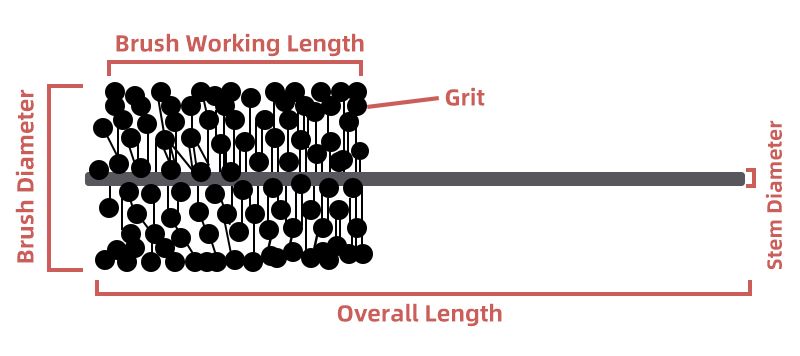

Brush Diameter	Grit Size	Brush Working Length	Overall Length	Stem Diameter	Fill Material	SKU	Request a Quote
0.12" / 3mm	#320	1.77" / 45mm	7.87" / 200mm	0.06" / 1.5mm	Silicon Carbide Abrasive	CH005-320-3
0.16" / 4mm	#320	1.77" / 45mm	7.87" / 200mm	0.08" / 2mm	Silicon Carbide Abrasive	CH005-320-4
0.19" / 5mm	#320	2.76" / 70mm	7.87" / 200mm	0.08" / 2mm	Silicon Carbide Abrasive	CH005-320-5
0.24" / 6mm	#320	2.76" / 70mm	7.87" / 200mm	0.08" / 2mm	Silicon Carbide Abrasive	CH005-320-6
0.28" / 7mm	#320	2.76" / 70mm	7.87" / 200mm	0.08" / 2mm	Silicon Carbide Abrasive	CH005-320-7
0.31" / 8mm	#320	2.76" / 70mm	7.87" / 200mm	0.11" / 2.8mm	Silicon Carbide Abrasive	CH005-320-8
0.33" / 8.5mm	#320	2.76" / 70mm	7.87" / 200mm	0.11" / 2.8mm	Silicon Carbide Abrasive	CH005-320-805
0.39" / 10mm	#320	2.76" / 70mm	7.87" / 200mm	0.12" / 3.1mm	Silicon Carbide Abrasive	CH005-320-10
0.41" / 10.5mm	#320	2.76" / 70mm	7.87" / 200mm	0.12" / 3.1mm	Silicon Carbide Abrasive	CH005-320-105
0.43" / 11mm	#320	2.76" / 70mm	7.87" / 200mm	0.12" / 3.1mm	Silicon Carbide Abrasive	CH005-320-11
0.47" / 12mm	#320	2.76" / 70mm	7.87" / 200mm	0.14" / 3.5mm	Silicon Carbide Abrasive	CH005-320-12
0.55" / 14mm	#320	2.76" / 70mm	7.87" / 200mm	0.14" / 3.5mm	Silicon Carbide Abrasive	CH005-320-14
0.63" / 16mm	#320	2.76" / 70mm	7.87" / 200mm	0.16" / 4mm	Silicon Carbide Abrasive	CH005-320-16
0.71" / 18mm	#320	2.76" / 70mm	7.87" / 200mm	0.16" / 4mm	Silicon Carbide Abrasive	CH005-320-18
0.79" / 20mm	#320	2.76" / 70mm	7.87" / 200mm	0.18" / 4.5mm	Silicon Carbide Abrasive	CH005-320-20
0.87" / 22mm	#320	2.76" / 70mm	7.87" / 200mm	0.18" / 4.5mm	Silicon Carbide Abrasive	CH005-320-22
0.98" / 25mm	#320	2.76" / 70mm	7.87" / 200mm	0.18" / 4.5mm	Silicon Carbide Abrasive	CH004-320-25
1.10" / 28mm	#320	2.76" / 70mm	7.87" / 200mm	0.20" / 5mm	Silicon Carbide Abrasive	CH005-320-28
1.18" / 30mm	#320	2.76" / 70mm	7.87" / 200mm	0.22" / 5.5mm	Silicon Carbide Abrasive	CH005-320-30
1.57" / 40mm	#320	2.76" / 70mm	7.87" / 200mm	0.22" / 5.5mm	Silicon Carbide Abrasive	CH005-320-40
3.15" / 80mm	#320	2.76" / 70mm	7.87" / 200mm	0.28" / 7.2mm	Silicon Carbide Abrasive	CH005-320-80

For more inquiries, please feel free to contact us to discuss your requirements in more detail and confirm prices. Or just click to design your own specials.
