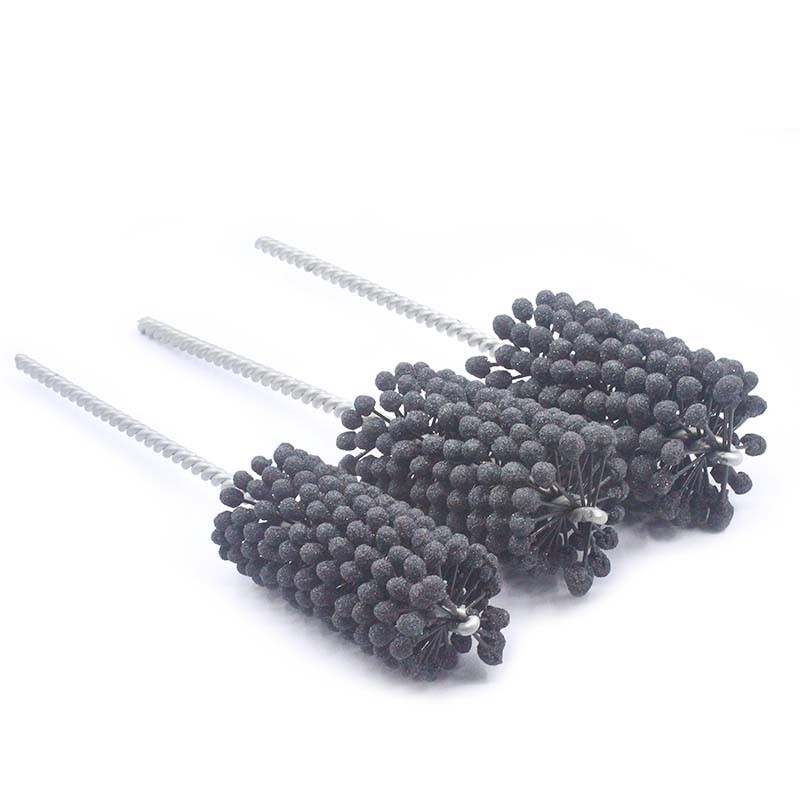

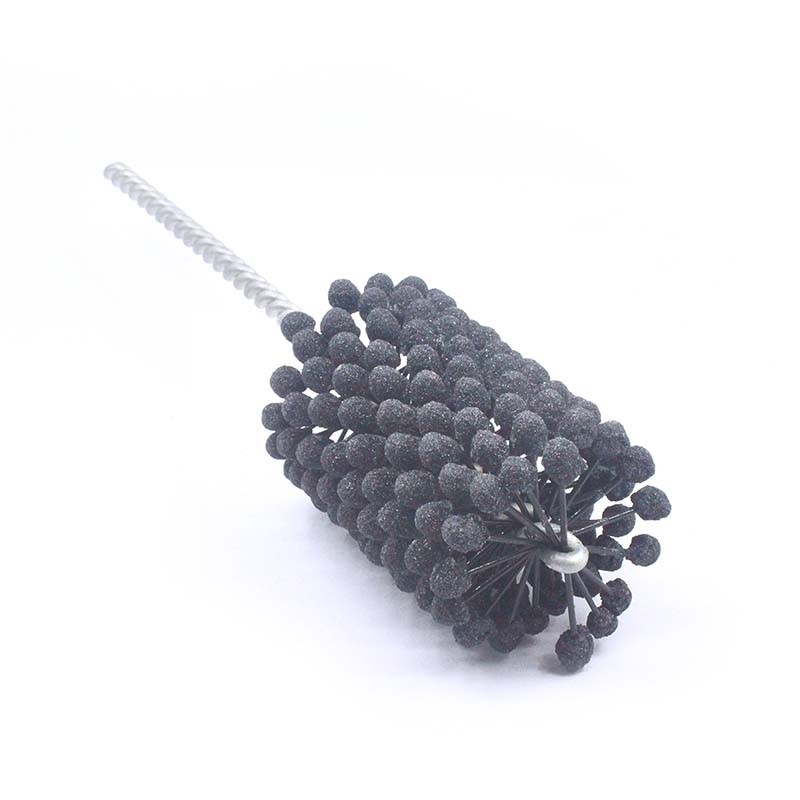

Honing Brushes, Cylinder Deburring Tool, Abrasive Nylon Filament, Industrial Quality, CH004

Category         : Honing Brushes, Cylinder Deburring Tool
Model No.       : GBH-CH004
Fill Material   : Silicon Carbide Abrasive
Grit Selections: #120, #240, #320
Brush Diameter: 12mm-48mm for Small Cylinders
Applications     : Polishing internal parts. Widely used for cylinder hone, air conditioning compressors, valves, engines, cam bearing, aerospace industry and more.

Product Description:

Honing brushes, cylinder deburring tool, abrasive nylon filament,  for small engines, cylinders


Honing brush, silicon carbide abrasive filament, flexible as cylinder honing and polishing tool.


  • Applications-Widely used in polishing of cylinders, pipes, valves with different shapes and sizes, usually used in hydraulic part, engine block, break hub, pipe internal machining, etc.

  • Finishing Benefits-Offered in a wide variety of grits and abrasives to allow machinists to achieve specific finishing tolerances as well as a beautiful crosshatch finish.

  • Crosshole Deburring-Ideal for finishing and deburring simultaneously in a single setup. Can be used in virtually any rotating spindle.

  • Silicon Carbide-Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials.


Applications: Widely used for motor cylinders, piston rods, boreholes on shafts and cranks, pneumatic and hydraulic cylinders, valve guides, compressed air equipment, wheel cylinders, brake control cylinders, pipes and tubes, and many other applications in the automotive and aerospace industries, as well as hydraulic systems and heat exchangers.



Choose Your Specifications

dimension-cylinder honing brush.jpg


Crosshole Honing Brushes in Small-Medium Diameter (12mm-48mm) for Small Engines, Cylinders

Ideal for deburring and polishing small engines, cyliners.

Brush Diameter

Grit Size

Brush Working Length

Overall Length

Stem Diameter

Fill Material

SKURequest a Quote
0.47" / 12mm#3202.76" / 70mm7.87" / 200mm0.14" / 3.5mmSilicon Carbide AbrasiveCH004-320-12screenshot-1710661529284.png
0.47" / 12mm#1202.76" / 70mm7.87" / 200mm0.13" / 3.3mmSilicon Carbide AbrasiveCH004-120-12screenshot-1710661529284.png
0.55" / 14mm#3202.76" / 70mm7.87" / 200mm0.14" / 3.5mmSilicon Carbide AbrasiveCH004-320-14screenshot-1710661529284.png
0.59" / 15mm#120
2.76" / 70mm7.87" / 200mm0.13" / 3.3mmSilicon Carbide AbrasiveCH004-120-15screenshot-1710661529284.png
0.63" / 16mm#3202.76" / 70mm7.87" / 200mm0.16" / 4mmSilicon Carbide AbrasiveCH004-320-16screenshot-1710661529284.png
0.71" / 18mm#3202.76" / 70mm7.87" / 200mm0.16" / 4mmSilicon Carbide AbrasiveCH004-320-18screenshot-1710661529284.png
0.71" / 18mm#1202.76" / 70mm7.87" / 200mm0.13" / 3.3mmSilicon Carbide AbrasiveCH004-120-18screenshot-1710661529284.png
0.79" / 20mm#3202.76" / 70mm7.87" / 200mm0.18" / 4.5mmSilicon Carbide AbrasiveCH004-320-20screenshot-1710661529284.png
0.79" /20mm#1202.76" / 70mm7.87" / 200mm0.16" / 4mmSilicon Carbide AbrasiveCH004-120-20screenshot-1710661529284.png
0.87" / 22mm#3202.76" / 70mm7.87" / 200mm0.18" / 4.5mmSilicon Carbide AbrasiveCH004-320-22screenshot-1710661529284.png
0.94" / 24mm#1202.76" / 70mm7.87" / 200mm0.17" / 4.3mmSilicon Carbide AbrasiveCH004-120-24screenshot-1710661529284.png
0.98" / 25mm#3202.76" / 70mm7.87" / 200mm0.18" / 4.5mmSilicon Carbide AbrasiveCH004-320-25screenshot-1710661529284.png
1.02" / 26mm#1202.76" / 70mm7.87" / 200mm0.20" / 5.2mmSilicon Carbide AbrasiveCH004-120-26screenshot-1710661529284.png
1.10" / 28mm#3202.76" / 70mm7.87" / 200mm0.20" / 5mmSilicon Carbide AbrasiveCH004-320-28screenshot-1710661529284.png
1.18" / 30mm#3202.76" / 70mm7.87" / 200mm0.22" / 5.5mmSilicon Carbide AbrasiveCH004-320-30screenshot-1710661529284.png
1.18" / 30mm#1202.76" / 70mm7.87" / 200mm0.20" / 5.2mmSilicon Carbide AbrasiveCH004-120-30screenshot-1710661529284.png
1.26" / 32mm#1202.76" / 70mm7.87" / 200mm0.20" / 5.2mmSilicon Carbide AbrasiveCH004-120-32screenshot-1710661529284.png
1.38" / 35mm#1202.76" / 70mm7.87" / 200mm0.22" / 5.6mmSilicon Carbide AbrasiveCH004-120-35screenshot-1710661529284.png
1.57" / 40mm#3202.76" / 70mm7.87" / 200mm0.22" / 5.5mmSilicon Carbide AbrasiveCH004-320-40screenshot-1710661529284.png
1.57" / 40mm#1202.76" / 70mm7.87" / 200mm0.23" / 5.8mmSilicon Carbide AbrasiveCH004-120-40screenshot-1710661529284.png
1.77" / 45mm#1202.76" / 70mm7.87" / 200mm0.23" / 5.8mmSilicon Carbide AbrasiveCH004-120-45screenshot-1710661529284.png
1.85" / 47mm#1202.76" / 70mm7.87" / 200mm0.23" / 5.8mmSilicon Carbide AbrasiveCH004-120-47screenshot-1710661529284.png


For more inquiries, please feel free to contact us to discuss your requirements in more detail and confirm prices. Or just click to design your own specials
