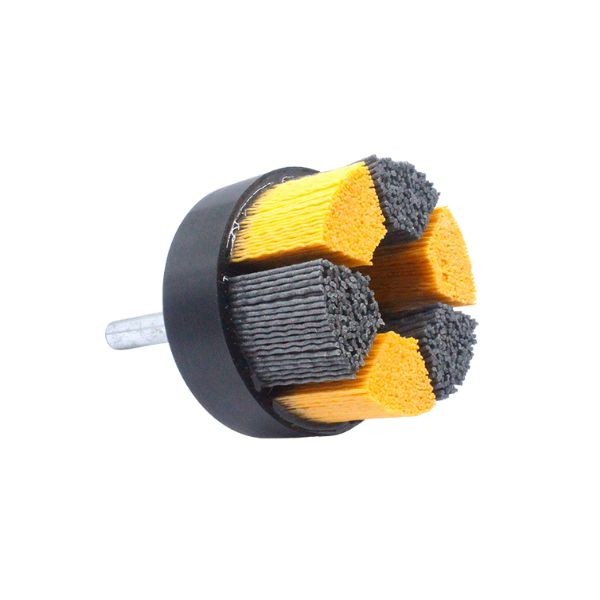

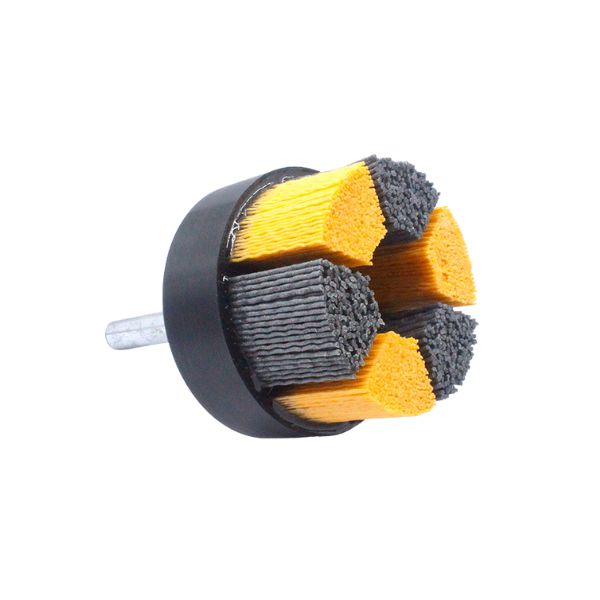

Category : Disc Brushes Model No. : GBD-DB010 Fill Pattern : Block Pattern Grit Selections : #120, #240, #320 Applications : For in-machine deburring, edge radiusing, polishing and surface finishing.
Disc Brushes, Block Pattern, Composite Molded, Surface Polishing, Deburring
Disc brush, abrasive filament, compatible with clamping fixture
Applications-Ideal for in-machine deburring, edge radiusing, surface conditioning
Industries-Compatible with automated machinery, CNC machining centers, transfer lines and robotic cells
Applications: Deburring flat surfaces on machined components, improving texture on machined or ground surfaces, deburring face-milled castings or forgings, blending tool marks after machining or grinding, deburring the edges of an aluminum engine cover.
Choose Your Specifications |
Brush Working Width | Grit Size | Trim Length | Overall Height | Shaft Height | Shaft Diameter | Fill Material | SKU | Request a Quote |
| 1.57" / 40mm | #240 | 1.18" / 30mm | 4.33" / 110mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-240-40 |  |
| 1.97" / 50mm | #240 | 1.18" / 30mm | 4.33" / 110mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-240-50 | |
| 1.18" / 30mm | #180 | 0.98" / 25mm | 4.13" / 105mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-180-30 | |
| 2.36" / 60mm | #180 | 0.98" / 25mm | 4.33" / 110mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-180-60 | |
| 3.94" / 100mm | #180 | 0.98" / 25mm | 4.52" / 115mm | 2.16" / 55mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-180-100 | |
| 1.57" / 40mm | #320 | 1.18" / 30mm | 3.93" / 100mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-320-40 | |
| 1.97" / 50mm | #320 | 1.18" / 30mm | 3.93" / 100mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-320-50 | |
| 2.36" / 60mm | #240 | 1.18" / 30mm | 4.13" / 105mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-240-60 | |
| 3.15" / 80mm | #240 | 1.18" / 30mm | 4.13" / 105mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-240-80 | |
| 3.94" / 100mm | #240 | 1.18" / 30mm | 4.13" / 105mm | 2.36" / 60mm | 0.39" / 10mm | Imported Ceramic Abrasive | DB010-240-100 | |
For more inquiries, please feel free to contact us to discuss your requirements for disc brushes in more details and confirm prices. Or just click to design your own specials.
