EB003, End Brushes with Shank, Abrasive Nylon Filament, Industrial Quality

End Brushes with Shank, Surface Finishing and Polishing, Cleaning where restricted space is an issue.

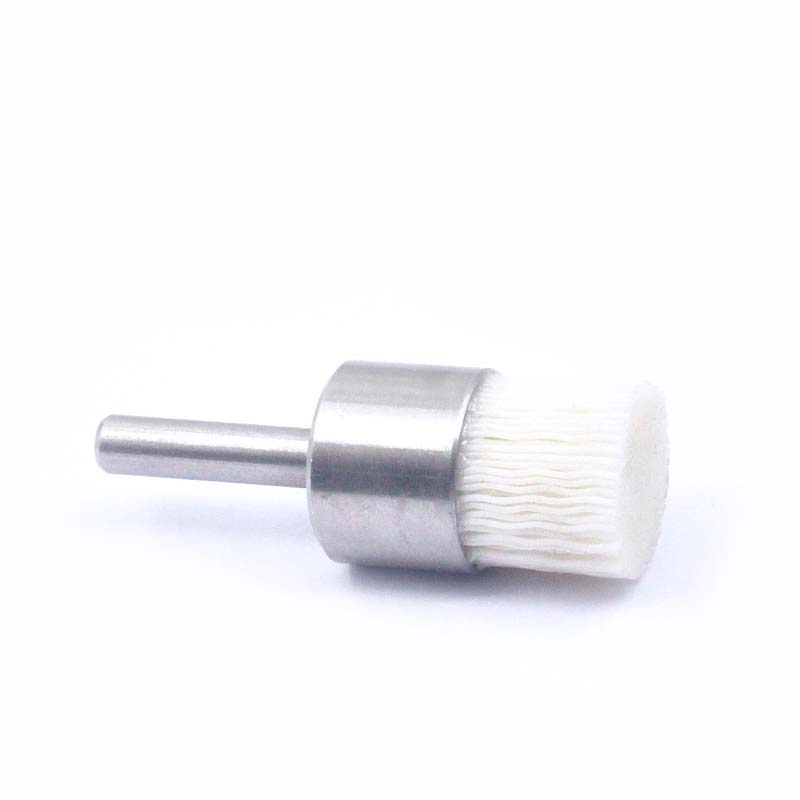

End brush, ceramic abrasive filament, with shank for direct adaptation

• Ideal for polishing molds or dies, cleaning castings, internal holes, removal, spot facing, and surface preparation for welding.


• Easily mounted into a tool holder, power drill chucks or collet.

Applications: Polishing, deburring flat surfaces on machined components, CNC machines, machine centers. Deburring face-milled castings or forgings, blending tool marks after machining or grinding, deburring the edges of an aluminum engine cover. Preferably to be used wet with cooling lubricant or oil.

Brush Working Diameter	Grit Size	Fill Diameter	Trim Length	Overall Length	Shank Length	Shank Diameter	Fill Material	SKU	Request a Quote
0.16" / 4mm	#500	0.023" / 0.6mm	0.39" / 10mm	1.97" / 50mm	1.57 / 40mm	0.16" / 4mm	Ceramic Abrasive	EB003-500-4
0.19" / 5mm	#500	0.023" / 0.6mm	0.31" / 8mm	2.08" / 53mm	1.77" / 45mm	0.23" / 6mm	Ceramic Abrasive	EB003-500-5
0.39" / 10mm	#500	0.023" / 0.6mm	0.59" / 15mm	2.16" / 55mm	1.57" / 40mm	0.23" / 6mm	Ceramic Abrasive	EB003-500-10
0.59" / 15mm	#320	0.023" / 0.6mm	0.59" / 15mm	2.16" / 55mm	1.57" / 40mm	0.23" / 6mm	Ceramic Abrasive	EB003-320-15
0.78" / 20mm	#320	0.023" / 0.6mm	0.59" / 15mm	2.16" / 55mm	1.57" / 40mm	0.23" / 6mm	Ceramic Abrasive	EB003-320-20
1.18" / 30mm	#180	0.039" / 1.0mm	0.98" / 25mm	4.13" / 105mm	2.36" / 60mm	0.39" / 10mm	Ceramic Abrasive	EB003-180-30
2.36" / 60mm	#180	0.039" / 1.0mm	0.98" / 25mm	4.33" / 110mm	2.36" / 60mm	0.39" / 10mm	Ceramic Abrasive	EB003-180-60
3.93" / 100mm	#180	0.039" / 1.0mm	0.98" / 25mm	4.52" / 115mm	2.16" / 55mm	0.39" / 10mm	Ceramic Abrasive	EB003-180-100

For more inquiries, please feel free to contact us to discuss your requirements for end brushes in more details and confirm prices. Or just click to design your own specials.
