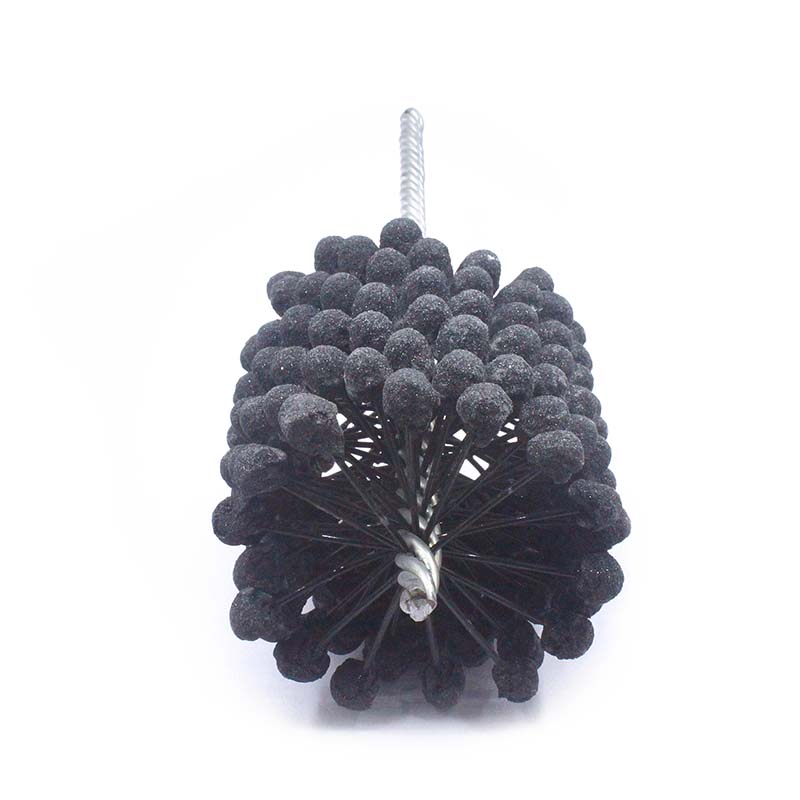

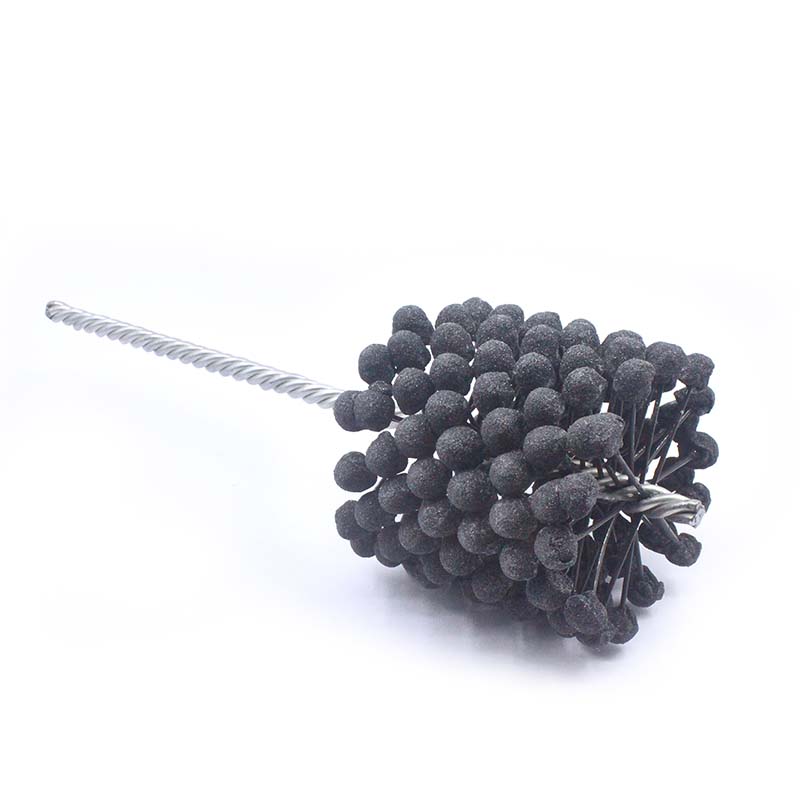

Honing Brushes, Cylinder Deburring Tool, Abrasive Nylon Filament, Industrial Quality, CH002

Category         : Honing Brushes, Cylinder Deburring Tool
Model No.       : GBH-CH002
Fill Material   : Silicon Carbide Abrasive
Grit Selections: #120, #240, #320
Brush Diameter: 51mm-89mm for Camshaft Bearings
Applications     : Polishing internal parts. Widely used for cylinder hone, air conditioning compressors, valves, engines, cam bearing, aerospace industry and more.

Product Description:

Honing brushes, cylinder deburring tool, abrasive nylon filament, for camshaft bearings


Honing brush, silicon carbide abrasive filament, flexible as cylinder honing and polishing tool.


  • Applications-Widely used in polishing of cylinders, pipes, valves with different shapes and sizes, usually used in hydraulic part, engine block, break hub, pipe internal machining, etc.

  • Finishing Benefits-Offered in a wide variety of grits and abrasives to allow machinists to achieve specific finishing tolerances as well as a beautiful crosshatch finish.

  • Crosshole Deburring-Ideal for finishing and deburring simultaneously in a single setup. Can be used in virtually any rotating spindle.

  • Silicon Carbide-Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials.



Applications: Widely used for motor cylinders, piston rods, boreholes on shafts and cranks, pneumatic and hydraulic cylinders, valve guides, compressed air equipment, wheel cylinders, brake control cylinders, pipes and tubes, and many other applications in the automotive and aerospace industries, as well as hydraulic systems and heat exchangers.



Choose Your Specifications

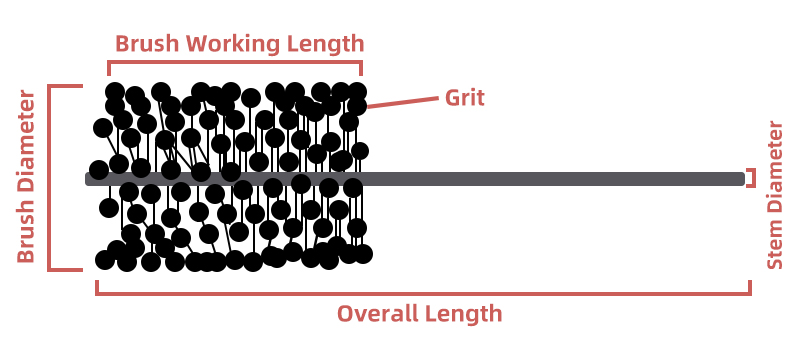

dimension-cylinder honing brush.jpg


Cylinder Honing Brushes in Medium Diameter (51mm-89mm) for Camshaft Bearings

Ideal for surface finishing in machined bores, deburring the ID of castings, and polishing camshaft bearings.

Brush Diameter

Grit Size

Brush Working Length

Overall Length

Stem Diameter

Fill Material

SKURequest a Quote
2.01" / 51mm#1202.76" / 70mm7.87" / 200mm0.23" / 5.8mmSilicon Carbide AbrasiveCH002-120-51screenshot-1710661529284.png
2.13" / 54mm#1201.77" / 45mm7.87" / 200mm0.25" / 6.4mmSilicon Carbide AbrasiveCH002-120-54screenshot-1710661529284.png
2.28" / 58mm#1202.76" / 70mm7.87" / 200mm0.25" / 6.4mmSilicon Carbide AbrasiveCH002-120-58screenshot-1710661529284.png
2.68" / 68mm#1202.76" / 70mm7.87" / 200mm0.26" / 6.5mmSilicon Carbide AbrasiveCH002-120-68screenshot-1710661529284.png
3.03" / 77mm#1202.76" / 70mm7.87" / 200mm0.26" / 6.5mmSilicon Carbide AbrasiveCH002-120-77screenshot-1710661529284.png
3.15" / 80mm#3202.76" / 70mm7.87" / 200mm0.28" / 7.2mmSilicon Carbide AbrasiveCH002-320-80screenshot-1710661529284.png
3.35" / 85mm#1203.15" / 80mm10.24" / 260mm0.31" / 8.0mmSilicon Carbide AbrasiveCH002-260-85screenshot-1710661529284.png


For more inquiries, please feel free to contact us to discuss your requirements for brush strip in more detail and confirm prices. Or just click to design your own specials
