Tube Brushes, Twisted Wire, Single Spiral, CS001

Category         : Tube Brushes, Twisted-in-Wire
Model No.       : GBT-CS001
Type                : Single Spiral/ Single Stem, for light-duty work.
Wire Material   : Copper
Tip Style          : Straight Cutting End
Applications    : Internal Tube Cleaning, Surface Finishing, Deburring and Polishing.

Product Description:

Tube brushes, twisted wire, single spiral, industrial quality, straight cutting end

Tube brush, copper wire, for internal hole deburring, for power drill.

Good abrasion resistance and chemical corrosion resistance,as well as resilience, rust- and water- proof characteristics.
Cleaning pipelines and mechanical holes, removing rust, polishing surface.
Easy to install, dismantle, easy to make without affecting the efficacy.
Maintenance is convenient and quick, reducing labor input, thus saving cost expenditure.

Applications: Tube cleaning, pipe deburring, removal of paint/dirt/rust, surface finishing and polishing.

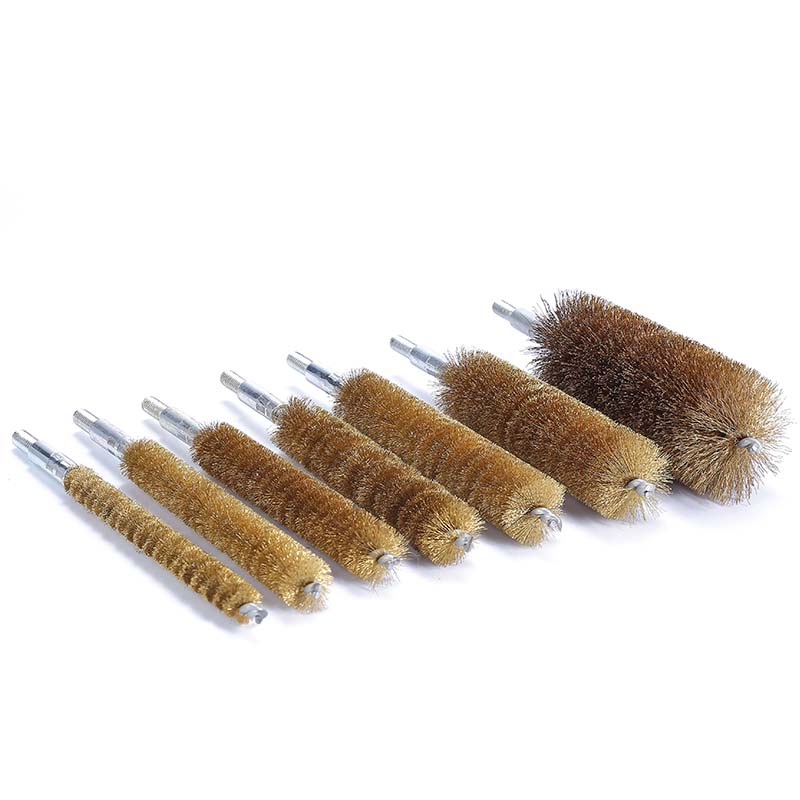

1. Main-Copper-Brass Wire Tube Brush 01.jpg

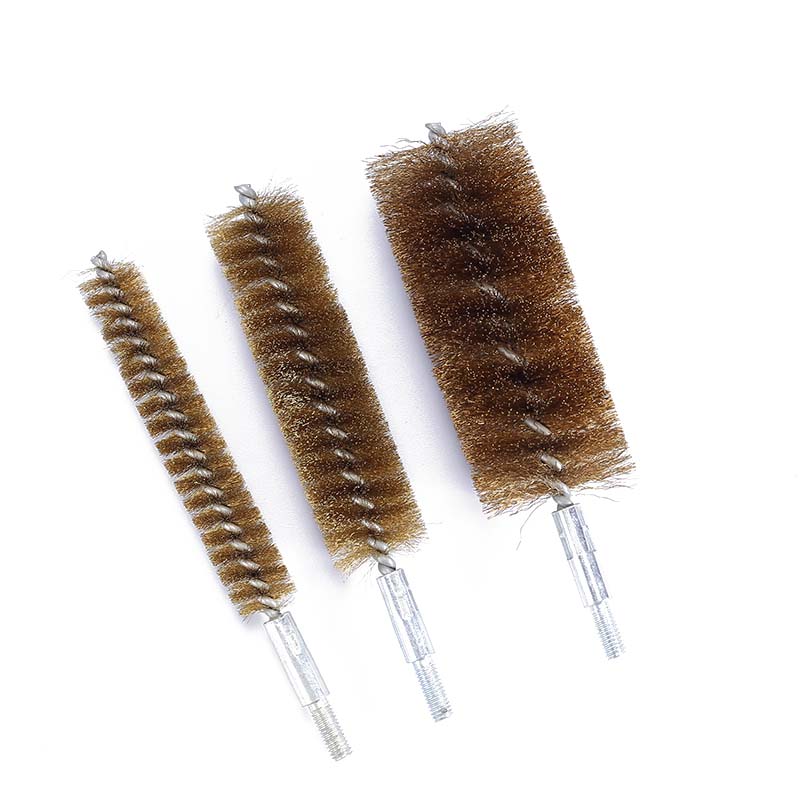

2. Description-Copper-Brass Wire Tube Brush 01.jpg

Choose Your Specifications

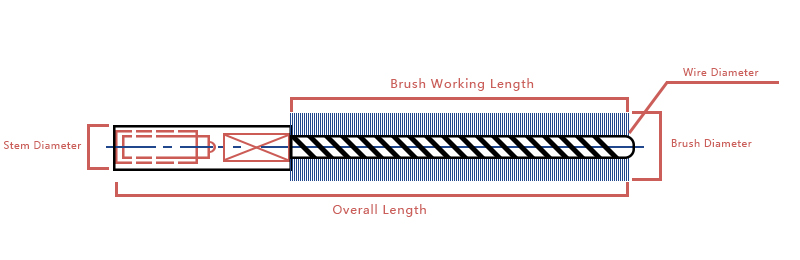

Brush Diameter	Brush Working Length	Overall Length	Stem Diameter	Wire Diameter	Wire Material	SKU	Request a Quote
1.97" / 50mm	3.94" / 100mm	7.87" / 200mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-200-50
1.57" / 40mm	3.94" / 100mm	7.87" / 200mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-200-40
1.18" / 30mm	3.94" / 100mm	7.87" / 200mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-200-30
0.98" / 25mm	3.94" / 100mm	7.87" / 200mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-200-25
0.79" / 20mm	3.94" / 100mm	7.87" / 200mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-200-20
0.59" / 15mm	3.94" / 100mm	7.87" / 200mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-200-15
0.47" / 12mm	3.94" / 100mm	7.87" / 200mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-200-12
0.39" / 10mm	3.94" / 100mm	7.87" / 200mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-200-10
0.31" / 8mm	3.94" / 100mm	7.87" / 200mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-200-8
0.24" / 6mm	3.94" / 100mm	7.87" / 200mm	0.20" / 5mm	0.006" / 0.15mm	Copper	CS001-200-6

Brush Diameter	Brush Working Length	Overall Length	Stem Diameter	Wire Diameter	Wire Material	SKU	Request a Quote
1.77" / 45mm	1.97" / 50mm	5.91" / 150mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-150-45
1.57" / 40mm	1.97" / 50mm	5.91" / 150mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-150-40
1.38" / 35mm	1.97" / 50mm	5.91" / 150mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-150-35
1.18" / 30mm	1.97" / 50mm	5.91" / 150mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-150-30
0.98" / 25mm	1.97" / 50mm	5.91" / 150mm	0.31" / 8mm	0.006" / 0.15mm	Copper	CS001-150-25
0.87" / 22mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-150-22
0.79" / 20mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-150-20
0.71"/ 18mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-150-18
0.59" / 15mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-150-15
0.47" / 12mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-150-12
0.39" / 10mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.006" / 0.15mm	Copper	CS001-150-10
0.31" / 8mm	1.97" / 50mm	5.91" / 150mm	0.24" / 6mm	0.004" / 0.10mm	Copper	CS001-150-8
0.24" / 6mm	1.97" / 50mm	5.91" / 150mm	0.20" / 5mm	0.004" / 0.10mm	Copper	CS001-150-6
0.20" / 5mm	1.97" / 50mm	5.91" / 150mm	0.16" / 4mm	0.004" / 0.10mm	Copper	CS001-150-5

Brush Diameter	Brush Working Length	Overall Length	Stem Diameter	Wire Diameter	Wire Material	SKU	Request a Quote
0.16" / 4.0mm	1.38" / 35mm	5.31" / 135mm	0.07" / 1.7mm	0.004" / 0.10mm	Copper	CS001-135-4
0.14" / 3.5mm	1.38" / 35mm	5.31" / 135mm	0.05" / 1.3mm	0.004" / 0.10mm	Copper	CS001-135-305
0.12" / 3.0mm	1.38" / 35mm	5.12" / 130mm	0.05" / 1.3mm	0.004" / 0.10mm	Copper	CS001-135-3
0.12" / 3.0mm	1.38" / 35mm	4.33" / 110mm	0.04" / 0.98mm	0.004" / 0.10mm	Copper	CS001-110-205
0.12" / 3.0mm	1.38" / 35mm	4.33" / 110mm	0.04" / 0.98mm	0.004" / 0.10mm	Copper	CS001-110-2
0.06" / 1.5mm	1.38" / 35mm	4.33" / 110mm	0.03" / 0.70mm	0.003" / 0.08mm	Copper	CS001-110-105

For more inquiries, please feel free to contact us to discuss your requirements for brush strip in more detail and confirm prices. Or just click to design your own specials.
